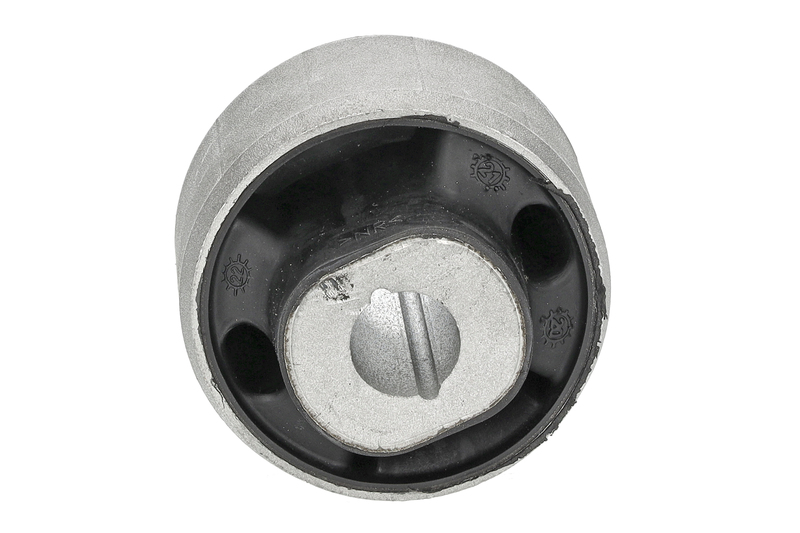

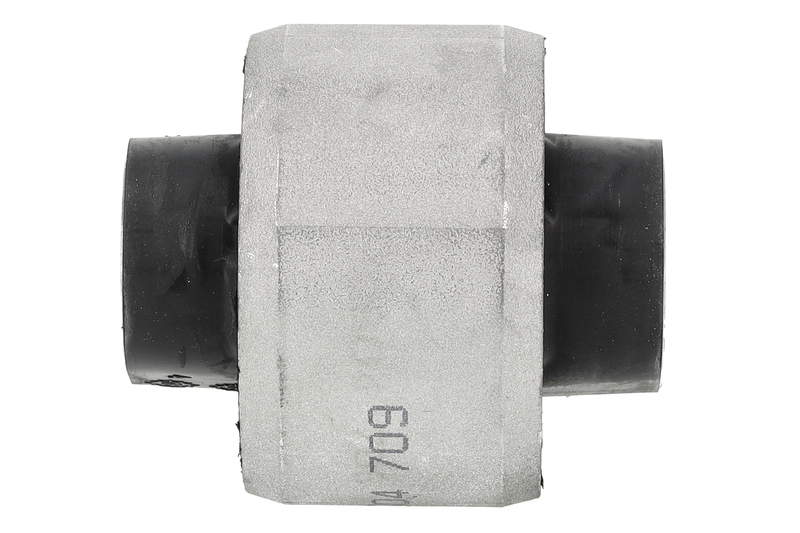

Mounting, control/trailing arm
70604
| Quality | Original AIC quality |
| Fitting Position: | Front Axle,Left,Right |
| Thickness [mm]: | 51 mm |
| Material: | Rubber/Metal |
| Inner Diameter [mm]: | 19 mm |
| Outer Diameter [mm]: | 55 mm |
| Mounting Type: | Rubber-Metal Mount |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| RENAULT | FLUENCE (L3_) | 01/2012 | 11/2014 | 21159 | 0085 | |
| RENAULT | FLUENCE (L3_) | 5AM 40 | 02/2012 | / | 9245 | 0070 |
| RENAULT | FLUENCE (L3_) | K4M 83 | 02/2010 | / | 31722 | 0081 |
| RENAULT | FLUENCE (L3_) | K4M 83 | 02/2010 | / | 5089 | 0082 |
| RENAULT | FLUENCE (L3_) | M4R 75 | 02/2010 | / | 31723 | 0103 |
| RENAULT | FLUENCE (L3_) | K9K 83 | 02/2010 | / | 32953 | 0063 |
| RENAULT | FLUENCE (L3_) | K9K 83 | 02/2010 | / | 31724 | 0066 |
| RENAULT | FLUENCE (L3_) | K9K 82 | 07/2014 | / | 10752 | 0070 |
| RENAULT | FLUENCE (L3_) | K9K 83 | 02/2010 | / | 32954 | 0078 |
| RENAULT | FLUENCE (L3_) | K9K 83 | 02/2010 | / | 31725 | 0081 |
| RENAULT | FLUENCE (L3_) | R9M 40 | 01/2013 | / | 10752 | 0096 |
| RENAULT | FLUENCE (L3_) | 01/2013 | / | 11325 | 0086 | |
| RENAULT | FLUENCE (L3_) | 02/2010 | / | 12423 | 0078 | |
| RENAULT | FLUENCE (L3_) | 01/2012 | / | 12486 | 0081 | |
| RENAULT | GRAND SCÉNIC II | 07/2014 | 09/2016 | 13385 | 0096 | |
| RENAULT | SCÉNIC III (JZ0 | 07/2014 | 09/2016 | 13385 | 0096 | |
| RENAULT | SCÉNIC III (JZ0 | 12/2008 | 09/2016 | 13387 | 0101 | |
| RENAULT | MEGANE III Comb | 01/2009 | 08/2015 | 13404 | 0081 | |
| RENAULT | MEGANE CC (EZ0/ | 11/2013 | 08/2015 | 13406 | 0078 | |
| RENAULT | MEGANE III Hatc | 02/2009 | 08/2015 | 13471 | 0081 | |
| RENAULT | MEGANE III Schr | 01/2014 | 01/2016 | 14149 | 0086 | |
| RENAULT | SCÉNIC III VAN | 01/2013 | 09/2016 | 14317 | 0081 | |
| RENAULT | SCÉNIC III VAN | 01/2013 | 09/2016 | 14317 | 0070 | |
| RENAULT | SCÉNIC III VAN | 04/2009 | 09/2016 | 14317 | 0081 | |
| RENAULT | FLUENCE (L3_) | 11/2015 | / | 15465 | 0084 | |
| RENAULT | MEGANE III Schr | F4R 87 | 11/2008 | 08/2015 | 29951 | 0132 |
| RENAULT | MEGANE III Schr | F4R 87 | 06/2012 | 08/2015 | 59349 | 0140 |
| RENAULT | MEGANE III Schr | F4R 87 | 11/2013 | 01/2016 | 10041 | 0162 |
| RENAULT | MEGANE III Schr | M9R 61 | 10/2010 | 08/2015 | 5288 | 0110 |
| RENAULT | MEGANE III Schr | M9R 61 | 04/2009 | 08/2015 | 29957 | 0118 |
| RENAULT | MEGANE III Schr | M9R 61 | 07/2012 | 08/2015 | 56793 | 0120 |
| RENAULT | MEGANE III Gran | K4M 84 | 05/2009 | 08/2015 | 31531 | 0074 |
| RENAULT | MEGANE III Gran | F4R 87 | 11/2008 | 08/2015 | 31542 | 0132 |
| RENAULT | MEGANE III Gran | F4R 87 | 09/2012 | 01/2016 | 59343 | 0162 |
| RENAULT | MEGANE III Gran | K9K 83 | 03/2009 | 08/2015 | 54521 | 0063 |
| RENAULT | MEGANE III Gran | K9K 83 | 05/2009 | 08/2015 | 31535 | 0066 |
| RENAULT | MEGANE III Gran | M9R 61 | 10/2010 | 08/2015 | 5289 | 0110 |
| RENAULT | MEGANE III Gran | M9R 61 | 04/2009 | 08/2015 | 31541 | 0118 |
| RENAULT | MEGANE III Gran | M9R 61 | 07/2012 | 08/2015 | 56795 | 0120 |
| RENAULT | MEGANE III Coup | F4R 87 | 11/2008 | 08/2015 | 29960 | 0132 |
| RENAULT | MEGANE III Coup | F4R 87 | 06/2012 | 08/2015 | 59346 | 0140 |
| RENAULT | MEGANE III Coup | M9R 61 | 04/2009 | 08/2015 | 31717 | 0110 |
| RENAULT | MEGANE III Coup | M9R 61 | 04/2009 | 08/2015 | 29963 | 0118 |
| RENAULT | MEGANE III Coup | M9R 61 | 07/2012 | 08/2015 | 56794 | 0120 |
| RENAULT | MEGANE CC (EZ0/ | H5F 40 | 01/2013 | 08/2015 | 59338 | 0097 |
| RENAULT | MEGANE CC (EZ0/ | F4R 87 | 06/2010 | 08/2015 | 5290 | 0132 |
| RENAULT | MEGANE CC (EZ0/ | K9K 83 | 06/2010 | 08/2015 | 33126 | 0081 |
| RENAULT | MEGANE CC (EZ0/ | M9R 61 | 06/2010 | 08/2015 | 33128 | 0118 |
| RENAULT | SCÉNIC III (JZ0 | H5F 40 | 04/2012 | 09/2016 | 57393 | 0085 |
| RENAULT | SCÉNIC III (JZ0 | H5F 40 | 01/2013 | 09/2016 | 59342 | 0097 |
| RENAULT | SCÉNIC III (JZ0 | H4J 70 | 02/2009 | 09/2016 | 31544 | 0096 |
| RENAULT | SCÉNIC III (JZ0 | K4M 86 | 04/2012 | 12/2013 | 12294 | 0079 |
| RENAULT | SCÉNIC III (JZ0 | K4M 85 | 02/2009 | 09/2016 | 31543 | 0081 |
| RENAULT | SCÉNIC III (JZ0 | K4M 86 | 02/2009 | 09/2016 | 6014 | 0081 |
| RENAULT | SCÉNIC III (JZ0 | M4R 71 | 02/2009 | 09/2016 | 31545 | 0103 |
| RENAULT | SCÉNIC III (JZ0 | K9K 83 | 04/2009 | 09/2016 | 5858 | 0063 |
| RENAULT | SCÉNIC III (JZ0 | K9K 84 | 11/2010 | 09/2016 | 5859 | 0070 |
| RENAULT | SCÉNIC III (JZ0 | K9K 83 | 02/2009 | 09/2016 | 31546 | 0078 |
| RENAULT | SCÉNIC III (JZ0 | K9K 65 | 04/2009 | 09/2016 | 5853 | 0081 |
| RENAULT | SCÉNIC III (JZ0 | R9M 40 | 04/2011 | 09/2016 | 10527 | 0096 |
| RENAULT | SCÉNIC III (JZ0 | F9Q 87 | 02/2009 | 09/2016 | 31548 | 0096 |
| RENAULT | SCÉNIC III (JZ0 | M9R 61 | 02/2009 | 09/2016 | 31547 | 0110 |
| RENAULT | SCÉNIC III (JZ0 | M9R 61 | 04/2009 | 09/2016 | 31549 | 0118 |
| RENAULT | GRAND SCÉNIC II | H5F 40 | 04/2012 | 09/2016 | 57394 | 0085 |
| RENAULT | GRAND SCÉNIC II | H5F 40 | 01/2013 | 09/2016 | 59335 | 0097 |
| RENAULT | GRAND SCÉNIC II | H4J 70 | 02/2009 | 09/2016 | 31550 | 0096 |
| RENAULT | GRAND SCÉNIC II | M4R 71 | 02/2009 | 09/2016 | 31552 | 0103 |
| RENAULT | GRAND SCÉNIC II | R9M 40 | 04/2011 | 09/2016 | 10528 | 0096 |
| RENAULT | GRAND SCÉNIC II | F9Q 87 | 02/2009 | 09/2016 | 31554 | 0096 |
| RENAULT | GRAND SCÉNIC II | M9R 61 | 02/2009 | 09/2016 | 31555 | 0110 |
| RENAULT | GRAND SCÉNIC II | M9R 61 | 04/2009 | 09/2016 | 31556 | 0118 |
| Manufacturer | Comparison number |
|---|---|
| RENAU | 5450 092 07R |
| RENAU | 5450 140 55R |
| RENAU | 5456 000 05R |
| RENAU | 6040 142 650 |
