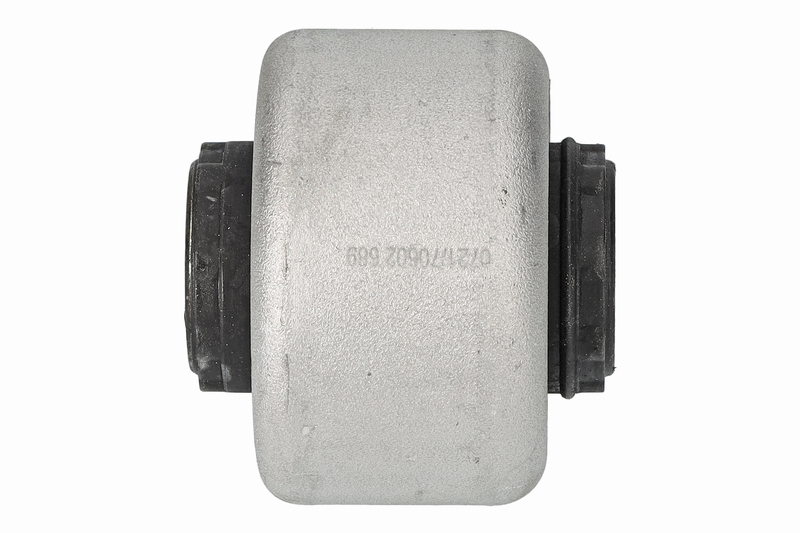

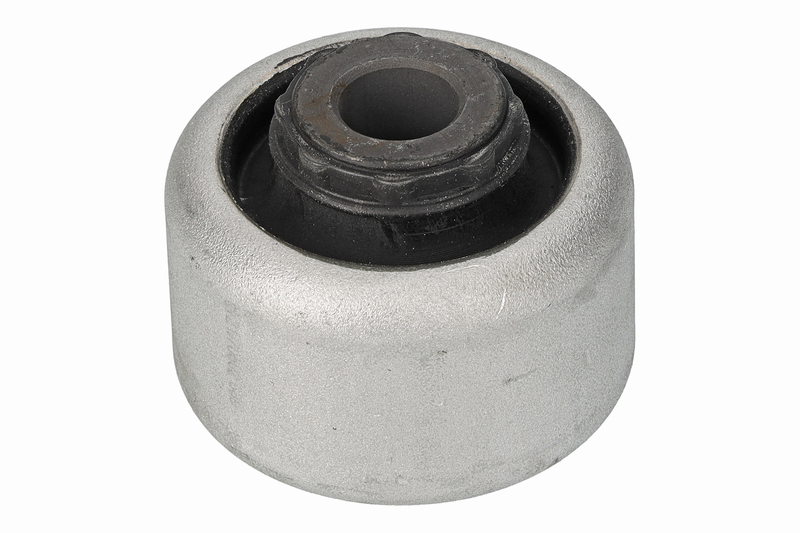

Mounting, control/trailing arm
70602
| Quality | new mobility parts |
| Fitting Position: | Front Axle,Left,Right |
| Thickness [mm]: | 50 mm |
| Material: | Rubber/Metal |
| Inner Diameter [mm]: | 14 mm |
| Outer Diameter [mm]: | 56 mm |
| Mounting Type: | Rubber-Metal Mount |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| CITROEN | C5 III Break (R | 02/2008 | 06/2010 | 30849 | 0103 | |
| CITROEN | C5 III (RD_) | 02/2008 | 12/2012 | 30850 | 0103 | |
| CITROEN | C5 III (RD_) | 03/2011 | 06/2014 | 49894 | 0120 | |
| CITROEN | C6 (TD_) | 06/2009 | 12/2010 | 13257 | 0155 | |
| CITROEN | C5 III (RD_) | 04/2009 | 12/2011 | 13258 | 0120 | |
| CITROEN | C5 III (RD_) | 10/2014 | 05/2017 | 13251 | 0101 | |
| CITROEN | C5 III (RD_) | 04/2008 | 12/2012 | 15502 | 0105 | |
| CITROEN | C5 III Break (R | 04/2008 | 12/2012 | 15502 | 0105 | |
| CITROEN | C5 III (RD_) | 5FS (E | 07/2010 | 06/2015 | 2898 | 0088 |
| CITROEN | C5 III (RD_) | 5FN (E | 07/2010 | 07/2016 | 10064 | 0110 |
| CITROEN | C5 III (RD_) | 5FV (E | 04/2009 | 07/2016 | 32793 | 0115 |
| CITROEN | C5 III (RD_) | 6FY (E | 02/2008 | 10/2010 | 24498 | 0092 |
| CITROEN | C5 III (RD_) | RFJ (E | 02/2008 | 10/2014 | 24499 | 0103 |
| CITROEN | C5 III (RD_) | XFU (E | 02/2008 | 12/2010 | 24500 | 0155 |
| CITROEN | C5 III (RD_) | 9HZ (D | 02/2008 | 10/2010 | 24501 | 0080 |
| CITROEN | C5 III (RD_) | 9HR (D | 07/2010 | 05/2012 | 33785 | 0082 |
| CITROEN | C5 III (RD_) | 9HL (D | 01/2012 | 06/2015 | 56264 | 0084 |
| CITROEN | C5 III (RD_) | RHR (D | 02/2008 | 06/2014 | 24502 | 0100 |
| CITROEN | C5 III (RD_) | RHE (D | 04/2009 | 05/2017 | 11504 | 0110 |
| CITROEN | C5 III (RD_) | RHF (D | 11/2008 | 06/2015 | 31997 | 0103 |
| CITROEN | C5 III (RD_) | RHH (D | 04/2009 | 07/2016 | 32794 | 0120 |
| CITROEN | C5 III (RD_) | AHW (D | 03/2015 | 05/2017 | 11237 | 0133 |
| CITROEN | C5 III (RD_) | 4HT (D | 02/2008 | 12/2011 | 24503 | 0125 |
| CITROEN | C5 III (RD_) | 4HL (D | 07/2010 | 06/2015 | 2899 | 0150 |
| CITROEN | C5 III (RD_) | DT17ED | 02/2008 | 12/2009 | 24504 | 0150 |
| CITROEN | C5 III (RD_) | DT20C | 04/2009 | 10/2014 | 31999 | 0177 |
| CITROEN | C5 III Break (R | 5FS (E | 07/2010 | 06/2015 | 2918 | 0088 |
| CITROEN | C5 III Break (R | 5FN (E | 04/2009 | 07/2016 | 58672 | 0110 |
| CITROEN | C5 III Break (R | 5FV (E | 04/2009 | 07/2016 | 32795 | 0115 |
| CITROEN | C5 III Break (R | 6FY (E | 02/2008 | 10/2010 | 24505 | 0092 |
| CITROEN | C5 III Break (R | RFJ (E | 02/2008 | 10/2014 | 24506 | 0103 |
| CITROEN | C5 III Break (R | XFU (E | 02/2008 | 12/2010 | 24507 | 0155 |
| CITROEN | C5 III Break (R | 9HZ (D | 02/2008 | 10/2010 | 24508 | 0080 |
| CITROEN | C5 III Break (R | 9HL (D | 07/2010 | 05/2012 | 33786 | 0082 |
| CITROEN | C5 III Break (R | 9HR (D | 06/2012 | 06/2015 | 56266 | 0084 |
| CITROEN | C5 III Break (R | RHR (D | 02/2008 | 06/2014 | 24509 | 0100 |
| CITROEN | C5 III Break (R | RHF (D | 04/2009 | 06/2015 | 31998 | 0103 |
| CITROEN | C5 III Break (R | RHE (D | 04/2009 | 05/2017 | 58677 | 0110 |
| CITROEN | C5 III Break (R | RHH (D | 04/2009 | 07/2016 | 32796 | 0120 |
| CITROEN | C5 III Break (R | AHW (D | 03/2015 | 05/2017 | 11237 | 0133 |
| CITROEN | C5 III Break (R | 4HP (D | 02/2008 | 08/2009 | 58674 | 0120 |
| CITROEN | C5 III Break (R | 4HT (D | 02/2008 | 12/2011 | 24510 | 0125 |
| CITROEN | C5 III Break (R | 4HL (D | 07/2010 | 06/2015 | 2935 | 0150 |
| CITROEN | C5 III Break (R | DT17ED | 02/2008 | 10/2009 | 24511 | 0150 |
| CITROEN | C5 III Break (R | DT20C | 04/2009 | 10/2014 | 32000 | 0177 |
| CITROEN | C6 (TD_) | XFX (E | 09/2005 | 12/2012 | 18771 | 0155 |
| CITROEN | C6 (TD_) | 4HP (D | 06/2006 | 12/2010 | 58669 | 0120 |
| CITROEN | C6 (TD_) | 4HT (D | 06/2006 | 12/2012 | 19774 | 0125 |
| CITROEN | C6 (TD_) | DT17ED | 09/2005 | 12/2011 | 18772 | 0150 |
| CITROEN | C6 (TD_) | DT20C | 04/2009 | 12/2012 | 32970 | 0177 |
| PEUGEOT | 407 (6D_) | 10/2005 | 02/2011 | 39827 | 0103 | |
| PEUGEOT | 508 SW I (8E_) | 10/2014 | 12/2018 | 10856 | 0133 | |
| PEUGEOT | 508 SW I (8E_) | 02/2012 | 12/2018 | 10933 | 0121 | |
| PEUGEOT | 407 (6D_) | 08/2008 | 12/2009 | 11685 | 0105 | |
| PEUGEOT | 407 SW (6E_, 6D | 11/2004 | 10/2007 | 12517 | 0093 | |
| PEUGEOT | 407 (6D_) | 11/2004 | 10/2007 | 13179 | 0093 | |
| PEUGEOT | 508 SW Kasten/K | 03/2013 | 12/2018 | 13252 | 0084 | |
| PEUGEOT | 508 SW Kasten/K | 03/2013 | 12/2018 | 13253 | 0103 | |
| PEUGEOT | 508 SW Kasten/K | 03/2013 | 12/2018 | 13253 | 0120 | |
| PEUGEOT | 508 SW Kasten/K | 11/2011 | / | 13253 | 0150 | |
| PEUGEOT | 407 SW Kasten/K | 08/2004 | 12/2010 | 13256 | 0080 | |
| PEUGEOT | 407 SW Kasten/K | 06/2009 | 12/2010 | 13256 | 0103 | |
| PEUGEOT | 407 SW Kasten/K | 06/2009 | 12/2010 | 13256 | 0120 | |
| PEUGEOT | 407 SW (6E_, 6D | 10/2005 | 02/2011 | 13456 | 0103 | |
| PEUGEOT | 407 (6D_) | 6FZ (E | 03/2004 | 07/2005 | 17987 | 0085 |
| PEUGEOT | 407 (6D_) | 6FY (E | 08/2005 | 12/2010 | 18998 | 0092 |
| PEUGEOT | 407 (6D_) | RFN (E | 03/2004 | 07/2005 | 17849 | 0100 |
| PEUGEOT | 407 (6D_) | RFJ (E | 09/2005 | 12/2010 | 19000 | 0103 |
| PEUGEOT | 407 (6D_) | RFJ (E | 09/2007 | 02/2011 | 8795 | 0103 |
| PEUGEOT | 407 (6D_) | 3FZ (E | 03/2004 | 10/2006 | 17850 | 0116 |
| PEUGEOT | 407 (6D_) | 3FY (E | 08/2005 | 12/2010 | 19001 | 0120 |
| PEUGEOT | 407 (6D_) | XFV (E | 03/2004 | 12/2010 | 17851 | 0155 |
| PEUGEOT | 407 (6D_) | 9HZ (D | 05/2004 | 12/2010 | 17986 | 0080 |
| PEUGEOT | 407 (6D_) | RHR (D | 05/2004 | 10/2010 | 17852 | 0100 |
| PEUGEOT | 407 (6D_) | RHF (D | 06/2009 | 12/2010 | 28140 | 0103 |
| PEUGEOT | 407 (6D_) | RHH (D | 06/2009 | 12/2010 | 33426 | 0120 |
| PEUGEOT | 407 (6D_) | 4HP (D | 03/2006 | 12/2010 | 32822 | 0120 |
| PEUGEOT | 407 (6D_) | 4HT (D | 03/2006 | 12/2010 | 19568 | 0125 |
| PEUGEOT | 407 (6D_) | UHZ (D | 10/2005 | 12/2010 | 19387 | 0150 |
| PEUGEOT | 407 SW (6E_, 6D | 6FZ (E | 05/2004 | 07/2005 | 18010 | 0085 |
| PEUGEOT | 407 SW (6E_, 6D | 6FY (E | 08/2005 | 12/2010 | 18994 | 0092 |
| PEUGEOT | 407 SW (6E_, 6D | RFN (E | 05/2004 | 07/2005 | 18012 | 0100 |
| PEUGEOT | 407 SW (6E_, 6D | RFJ (E | 08/2005 | 12/2010 | 18995 | 0103 |
| PEUGEOT | 407 SW (6E_, 6D | RFJ (E | 01/2008 | 12/2010 | 30848 | 0103 |
| PEUGEOT | 407 SW (6E_, 6D | 3FZ (E | 05/2004 | 07/2005 | 18013 | 0116 |
| PEUGEOT | 407 SW (6E_, 6D | 3FY (E | 08/2005 | 12/2010 | 18996 | 0120 |
| PEUGEOT | 407 SW (6E_, 6D | XFV (E | 05/2004 | 12/2010 | 18014 | 0155 |
| PEUGEOT | 407 SW (6E_, 6D | 9HZ (D | 05/2004 | 12/2010 | 18015 | 0080 |
| PEUGEOT | 407 SW (6E_, 6D | RHR (D | 07/2004 | 12/2010 | 18016 | 0100 |
| PEUGEOT | 407 SW (6E_, 6D | RHR (D | 08/2008 | 12/2010 | 28141 | 0103 |
| PEUGEOT | 407 SW (6E_, 6D | RHH (D | 06/2009 | 12/2010 | 33427 | 0120 |
| PEUGEOT | 407 SW (6E_, 6D | 4HP (D | 06/2008 | 12/2010 | 32821 | 0120 |
| PEUGEOT | 407 SW (6E_, 6D | 4HT (D | 03/2006 | 12/2010 | 19633 | 0125 |
| PEUGEOT | 407 SW (6E_, 6D | UHZ (D | 10/2005 | 12/2010 | 19388 | 0150 |
| PEUGEOT | 407 Coupe (6C_) | 3FY (E | 10/2005 | / | 18990 | 0120 |
| PEUGEOT | 407 Coupe (6C_) | XFV (E | 10/2005 | / | 18991 | 0155 |
| PEUGEOT | 407 Coupe (6C_) | RHR (D | 10/2005 | / | 26631 | 0100 |
| PEUGEOT | 407 Coupe (6C_) | RHH (D | 06/2009 | / | 31727 | 0120 |
| PEUGEOT | 407 Coupe (6C_) | UHZ (D | 10/2005 | / | 18992 | 0150 |
| PEUGEOT | 407 Coupe (6C_) | DT20C | 06/2009 | / | 31728 | 0177 |
| PEUGEOT | 508 I (8D_) | 5FH (E | 11/2010 | 12/2018 | 12767 | 0085 |
| PEUGEOT | 508 I (8D_) | 5FS (E | 11/2010 | 12/2018 | 697 | 0088 |
| PEUGEOT | 508 I (8D_) | 5FN (E | 11/2010 | 12/2018 | 12769 | 0110 |
| PEUGEOT | 508 I (8D_) | EP6CDT | 11/2010 | 12/2018 | 711 | 0115 |
| PEUGEOT | 508 I (8D_) | 5GZ (E | 01/2012 | 12/2018 | 55284 | 0120 |
| PEUGEOT | 508 I (8D_) | 09/2011 | 12/2018 | 56438 | 0121 | |
| PEUGEOT | 508 I (8D_) | 9HR (D | 11/2010 | 12/2018 | 713 | 0082 |
| PEUGEOT | 508 I (8D_) | 9HD (D | 02/2012 | 12/2018 | 12960 | 0084 |
| PEUGEOT | 508 I (8D_) | BHX (D | 09/2014 | 12/2018 | 11732 | 0085 |
| PEUGEOT | 508 I (8D_) | BHZ (D | 03/2014 | 12/2018 | 11367 | 0088 |
| PEUGEOT | 508 I (8D_) | RHR (D | 11/2010 | 12/2018 | 12772 | 0100 |
| PEUGEOT | 508 I (8D_) | RHF (D | 11/2010 | 12/2018 | 717 | 0103 |
| PEUGEOT | 508 I (8D_) | AHX (D | 04/2014 | 12/2018 | 10588 | 0110 |
| PEUGEOT | 508 I (8D_) | RHH (D | 11/2010 | 12/2018 | 731 | 0120 |
| PEUGEOT | 508 I (8D_) | AHW (D | 04/2014 | 12/2018 | 10588 | 0133 |
| PEUGEOT | 508 I (8D_) | 11/2010 | 12/2018 | 58646 | 0147 | |
| PEUGEOT | 508 I (8D_) | 4HL (D | 11/2010 | 12/2018 | 733 | 0150 |
| PEUGEOT | 508 SW I (8E_) | 5FH (E | 11/2010 | 12/2018 | 12776 | 0085 |
| PEUGEOT | 508 SW I (8E_) | 5FS (E | 11/2010 | 12/2018 | 704 | 0088 |
| PEUGEOT | 508 SW I (8E_) | 5FX (E | 11/2010 | 12/2018 | 12778 | 0110 |
| PEUGEOT | 508 SW I (8E_) | EP6CDT | 11/2010 | 12/2018 | 712 | 0115 |
| PEUGEOT | 508 SW I (8E_) | 9HR (D | 11/2010 | 12/2018 | 714 | 0082 |
| PEUGEOT | 508 SW I (8E_) | 9HD (D | 02/2012 | 12/2018 | 12961 | 0084 |
| PEUGEOT | 508 SW I (8E_) | BHX (D | 09/2014 | 12/2018 | 11732 | 0085 |
| PEUGEOT | 508 SW I (8E_) | BHZ (D | 03/2014 | 12/2018 | 11367 | 0088 |
| PEUGEOT | 508 SW I (8E_) | RHR (D | 11/2010 | 12/2018 | 12783 | 0100 |
| PEUGEOT | 508 SW I (8E_) | RHF (D | 11/2010 | 12/2018 | 730 | 0103 |
| PEUGEOT | 508 SW I (8E_) | AHX (D | 04/2014 | 12/2018 | 10588 | 0110 |
| PEUGEOT | 508 SW I (8E_) | RHH (D | 11/2010 | 12/2018 | 732 | 0120 |
| PEUGEOT | 508 SW I (8E_) | RHC (D | 11/2010 | 12/2018 | 10651 | 0147 |
| PEUGEOT | 508 SW I (8E_) | AHW (D | 04/2014 | 12/2018 | 10588 | 0133 |
| PEUGEOT | 508 SW I (8E_) | 4HL (D | 11/2010 | 12/2018 | 754 | 0150 |
| Manufacturer | Comparison number |
|---|---|
| CITRO | 3523.AQ |
| PEUGE | 3523.AQ |
