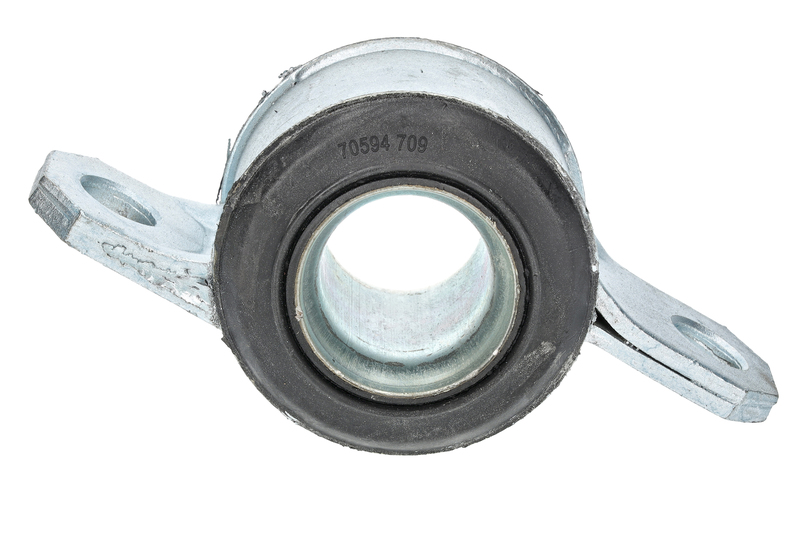

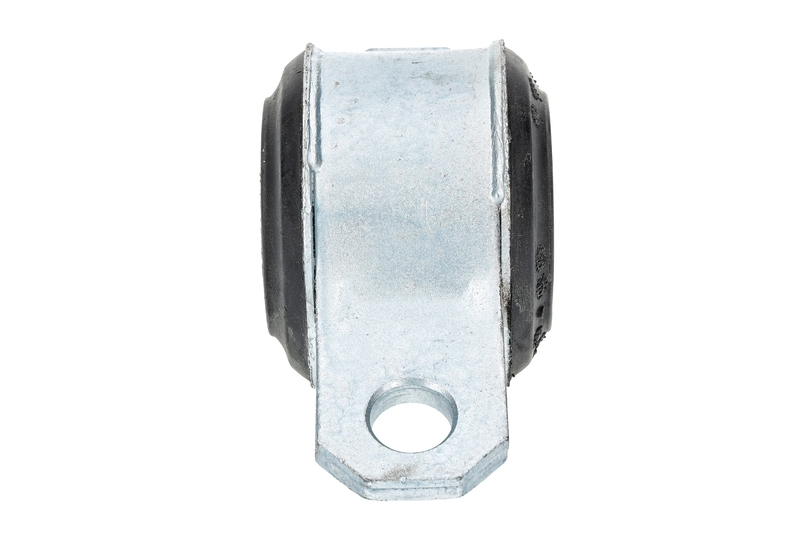

Mounting, control/trailing arm
70594
| Quality | Original AIC quality |
| Fitting Position: | Front Axle,Left,Right |
| Thickness [mm]: | 64 mm |
| Width [mm]: | 153 mm |
| Material: | Rubber |
| Inner Diameter [mm]: | 34 mm |
| Outer Diameter [mm]: | 77 mm |
| Control/Trailing Arm Type: | for control arm |
| Mounting Type: | Rubber-Metal Mount |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| ABARTH | / | / | 11844 | |||
| ABARTH | / | / | 15706 | |||
| ABARTH | / | / | 14466 | |||
| ABARTH | / | / | 14464 | |||
| ABARTH | / | / | 16162 | |||
| ABARTH | / | / | 58733 | |||
| ABARTH | / | / | 16160 | |||
| ABARTH | / | / | 16161 | |||
| ABARTH | / | / | 8959 | |||
| ABARTH | / | / | 16649 | |||
| ABARTH | / | / | 16651 | |||
| ABARTH | / | / | 16868 | |||
| ABARTH | / | / | 16650 | |||
| ABARTH | / | / | 16648 | |||
| ABARTH | / | / | 58734 | |||
| ABARTH | / | / | 16867 | |||
| ABARTH | / | / | 26755 | |||
| ABARTH | / | / | 16740 | |||
| ABARTH | / | / | 16739 | |||
| ABARTH | / | / | 16655 | |||
| ABARTH | / | / | 16654 | |||
| ABARTH | / | / | 16652 | |||
| ABARTH | / | / | 17608 | |||
| ABARTH | / | / | 16738 | |||
| ABARTH | / | / | 17607 | |||
| ABARTH | / | / | 3778 | |||
| ABARTH | / | / | 3776 | |||
| ABARTH | / | / | 3777 | |||
| ABARTH | / | / | 5158 | |||
| ABARTH | / | / | 8960 | |||
| ABARTH | / | / | 15592 | |||
| ABARTH | / | / | 11408 | |||
| ABARTH | / | / | 11410 | |||
| ABARTH | / | / | 11409 | |||
| ABARTH | / | / | 16158 | |||
| ABARTH | / | / | 16159 | |||
| ABARTH | / | / | 16487 | |||
| ABARTH | / | / | 16653 | |||
| ABARTH | / | / | 16866 | |||
| ABARTH | / | / | 26754 | |||
| CITROEN | RELAY I Kasten | THZ (D | 10/1996 | 08/1997 | 27854 | 0076 |
| CITROEN | RELAY II Bus (2 | XU10J2 | 04/2002 | 06/2006 | 16662 | 0081 |
| CITROEN | RELAY II Bus (2 | XU10J2 | 02/2003 | 06/2006 | 19006 | 0081 |
| CITROEN | RELAY II Bus (2 | 4HY (D | 04/2002 | 06/2006 | 16664 | 0074 |
| CITROEN | RELAY II Bus (2 | 8140.4 | 04/2002 | 06/2006 | 16665 | 0094 |
| CITROEN | RELAY II Bus (2 | 8140.4 | 04/2002 | 06/2006 | 54933 | 0094 |
| CITROEN | RELAY II Kasten | XU10J2 | 04/2002 | 06/2006 | 16759 | 0081 |
| CITROEN | RELAY II Kasten | XU10J2 | 02/2003 | 06/2006 | 17676 | 0081 |
| CITROEN | RELAY II Kasten | RHV (D | 04/2002 | 06/2006 | 16760 | 0062 |
| CITROEN | RELAY II Kasten | 4HY (D | 04/2002 | 06/2006 | 16761 | 0074 |
| CITROEN | RELAY II Kasten | 8140.4 | 04/2002 | 06/2006 | 16762 | 0094 |
| CITROEN | RELAY II Kasten | 8140.4 | 04/2002 | 06/2006 | 16763 | 0094 |
| CITROEN | RELAY II Kasten | 8140.4 | 04/2004 | 06/2006 | 18236 | 0107 |
| CITROEN | RELAY II Pritsc | 4HY (D | 04/2002 | 06/2006 | 16765 | 0074 |
| CITROEN | RELAY II Pritsc | 8140.4 | 04/2002 | 06/2006 | 16766 | 0094 |
| CITROEN | RELAY II Pritsc | 8140.4 | 05/2004 | 06/2006 | 18235 | 0107 |
| CITROEN | RELAY II Pritsc | F28TDC | 02/2002 | 06/2006 | 27990 | 0094 |
| CITROEN | RELAY I Bus (23 | 01/1999 | 02/2002 | 9375 | 0064 | |
| CITROEN | RELAY I Pritsch | 01/1999 | 02/2002 | 9377 | 0064 | |
| FIAT | DUCATO Bus (230 | RFW | 11/1994 | 11/2001 | 21437 | 0080 |
| FIAT | DUCATO Kasten ( | DJY | 04/1998 | 04/2002 | 11843 | 0050 |
| FIAT | DUCATO Kasten ( | DHX (X | 04/1998 | 04/2002 | 11842 | 0066 |
| FIAT | DUCATO Kasten ( | 230 A2 | 03/1994 | 04/2002 | 7738 | 0051 |
| FIAT | DUCATO Kasten ( | 230 A4 | 08/1994 | 04/2002 | 10696 | 0059 |
| FIAT | DUCATO Kasten ( | 230 A3 | 03/1994 | 04/2002 | 11848 | 0060 |
| FIAT | DUCATO Kasten ( | RFW | 11/1994 | 04/2002 | 26775 | 0080 |
| FIAT | DUCATO Kasten ( | 8140.6 | 03/1994 | 04/2002 | 7740 | 0062 |
| FIAT | DUCATO Kasten ( | 8140.4 | 03/1994 | 04/2002 | 6003 | 0085 |
| FIAT | DUCATO Kasten ( | 8140.6 | 05/1998 | 04/2002 | 11841 | 0064 |
| FIAT | DUCATO Kasten ( | 8140.4 | 10/1997 | 04/2002 | 10695 | 0090 |
| FIAT | DUCATO Pritsche | RFW | 03/1994 | 04/2002 | 11847 | 0080 |
| FIAT | DUCATO Pritsche | 230 A2 | 03/1994 | 04/2002 | 11849 | 0051 |
| FIAT | DUCATO Pritsche | 230 A4 | 08/1994 | 04/2002 | 11851 | 0059 |
| FIAT | DUCATO Pritsche | 230 A3 | 03/1994 | 04/2002 | 11850 | 0060 |
| FIAT | DUCATO Pritsche | 8140.6 | 03/1994 | 04/2002 | 14863 | 0062 |
| FIAT | DUCATO Pritsche | 8140.4 | 05/1998 | 09/2001 | 20698 | 0090 |
| FIAT | DUCATO Pritsche | 8140.4 | 12/1998 | 04/2002 | 11845 | 0090 |
| FIAT | DUCATO Kasten ( | 10/2001 | 04/2002 | 16486 | 0062 | |
| FIAT | DUCATO Kasten ( | 05/1998 | 11/2001 | 20226 | 0059 | |
| FIAT | DUCATO Kasten ( | 06/1994 | 08/1998 | 20227 | 0080 | |
| FIAT | DUCATO Kasten ( | 11/1994 | 04/1998 | 20228 | 0080 | |
| FIAT | DUCATO Kasten ( | 05/1998 | 09/2001 | 20229 | 0090 | |
| FIAT | DUCATO Bus (230 | 11/1994 | 04/1998 | 20508 | 0080 | |
| FIAT | DUCATO Pritsche | 06/1994 | 08/1998 | 20694 | 0080 | |
| FIAT | DUCATO Pritsche | 11/1994 | 04/1998 | 20695 | 0080 | |
| FIAT | DUCATO Pritsche | 06/1994 | 04/1998 | 20696 | 0085 | |
| FIAT | DUCATO Pritsche | 05/1998 | 11/2001 | 20697 | 0064 | |
| FIAT | DUCATO Bus (244 | 11/2003 | 07/2006 | 20848 | 0090 | |
| FIAT | DUCATO Bus (244 | 11/2003 | 07/2006 | 20849 | 0090 | |
| FIAT | DUCATO Kasten ( | 12/2001 | 07/2006 | 20850 | 0090 | |
| FIAT | DUCATO Pritsche | 11/2003 | 07/2006 | 20854 | 0090 | |
| FIAT | DUCATO Kasten ( | 11/1994 | 04/1998 | 27089 | 0085 | |
| FIAT | DUCATO Bus (230 | 05/1998 | 11/2001 | 27162 | 0059 | |
| FIAT | DUCATO Pritsche | 05/1998 | 11/2001 | 27281 | 0059 | |
| FIAT | DUCATO Pritsche | 11/1994 | 04/1998 | 27282 | 0085 | |
| FIAT | DUCATO Pritsche | 11/1994 | 09/2001 | 57191 | 0080 | |
| FIAT | DUCATO Pritsche | 07/2001 | 04/2002 | 58732 | 0062 | |
| FIAT | DUCATO Bus (244 | 11/2002 | 07/2006 | 13925 | 0071 | |
| FIAT | DUCATO Kasten ( | 11/2002 | 07/2006 | 13925 | 0071 | |
| PEUGEOT | BOXER Kasten (2 | 03/1996 | 09/1998 | 27830 | 0080 | |
| PEUGEOT | BOXER Kasten (2 | 8140.6 | 01/1999 | 02/2002 | 9390 | 0064 |
| PEUGEOT | BOXER Pritsche/ | RFW (X | 06/1994 | 04/2002 | 11086 | 0080 |
| PEUGEOT | BOXER Bus (244, | RFL (X | 12/2001 | 06/2006 | 16642 | 0081 |
| PEUGEOT | BOXER Bus (244, | RHV (D | 12/2001 | 06/2006 | 16643 | 0062 |
| PEUGEOT | BOXER Bus (244, | 4HY (D | 12/2001 | 06/2006 | 16644 | 0074 |
| PEUGEOT | BOXER Bus (244, | 8140.4 | 12/2001 | 06/2006 | 16645 | 0094 |
| PEUGEOT | BOXER Bus (244, | 8140.4 | 12/2001 | 06/2006 | 16756 | 0094 |
| PEUGEOT | BOXER Kasten (2 | RFL (X | 12/2001 | 06/2006 | 16755 | 0081 |
| PEUGEOT | BOXER Kasten (2 | RHV (D | 04/2002 | 06/2006 | 16752 | 0062 |
| PEUGEOT | BOXER Kasten (2 | 4HY (D | 12/2001 | 06/2006 | 16754 | 0074 |
| PEUGEOT | BOXER Kasten (2 | 8140.4 | 12/2001 | 06/2006 | 16753 | 0094 |
| PEUGEOT | BOXER Kasten (2 | 8140.4 | 12/2001 | 06/2006 | 16757 | 0094 |
| PEUGEOT | BOXER Kasten (2 | 8140.4 | 04/2004 | 06/2006 | 19342 | 0107 |
| PEUGEOT | BOXER Pritsche/ | RHV (D | 12/2001 | 06/2006 | 16748 | 0062 |
| PEUGEOT | BOXER Pritsche/ | 4HY (D | 12/2001 | 06/2006 | 16750 | 0074 |
| PEUGEOT | BOXER Pritsche/ | 8140.4 | 12/2001 | 06/2006 | 16749 | 0094 |
| PEUGEOT | BOXER Pritsche/ | 8140.4 | 12/2001 | 06/2006 | 16758 | 0094 |
| PEUGEOT | BOXER Pritsche/ | 8140.4 | 04/2004 | 06/2006 | 19343 | 0107 |
| PEUGEOT | BOXER Bus (230P | 01/1999 | 02/2002 | 9378 | 0064 | |
| PEUGEOT | BOXER Pritsche/ | 01/1999 | 02/2002 | 9391 | 0064 | |
| PEUGEOT | BOXER Pritsche/ | 12/2001 | 04/2002 | 20693 | 0081 | |
| PEUGEOT | BOXER Bus (230P | 10/1997 | 11/2001 | 27696 | 0062 | |
| PEUGEOT | BOXER Kasten (2 | 10/1997 | 11/2001 | 27831 | 0062 | |
| PEUGEOT | BOXER Kasten (2 | 03/1996 | 09/1998 | 27832 | 0066 | |
| PEUGEOT | BOXER Bus (244, | 04/2004 | 06/2006 | 27988 | 0107 | |
| PEUGEOT | BOXER Bus (230P | 10/2000 | 11/2001 | 28527 | 0093 | |
| PEUGEOT | BOXER Kasten (2 | 10/2000 | 11/2001 | 28528 | 0093 | |
| PEUGEOT | BOXER Pritsche/ | 10/2000 | 11/2001 | 28530 | 0093 | |
| PEUGEOT | BOXER Pritsche/ | 12/2001 | 06/2006 | 29599 | 0081 | |
| PEUGEOT | BOXER Bus (244, | 12/2001 | 06/2006 | 29748 | 0081 | |
| PEUGEOT | BOXER Kasten (2 | 12/2001 | 06/2006 | 29761 | 0081 | |
| PEUGEOT | BOXER Kasten (2 | 09/2005 | 09/2009 | 37793 | 0093 |
| Manufacturer | Comparison number |
|---|---|
| FIAT | 13394 65080 |
| FIAT | 13394 67080 |
| CITRO | 3523.AP |
| PEUGE | 3523.AP |
