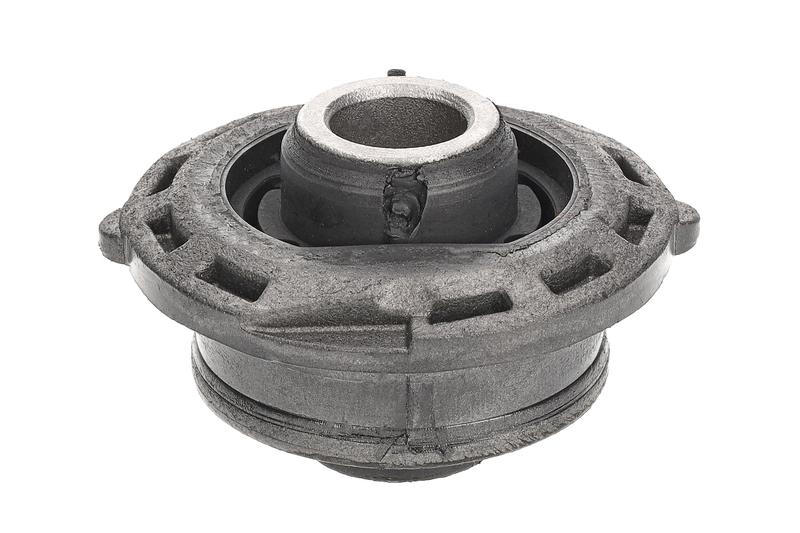

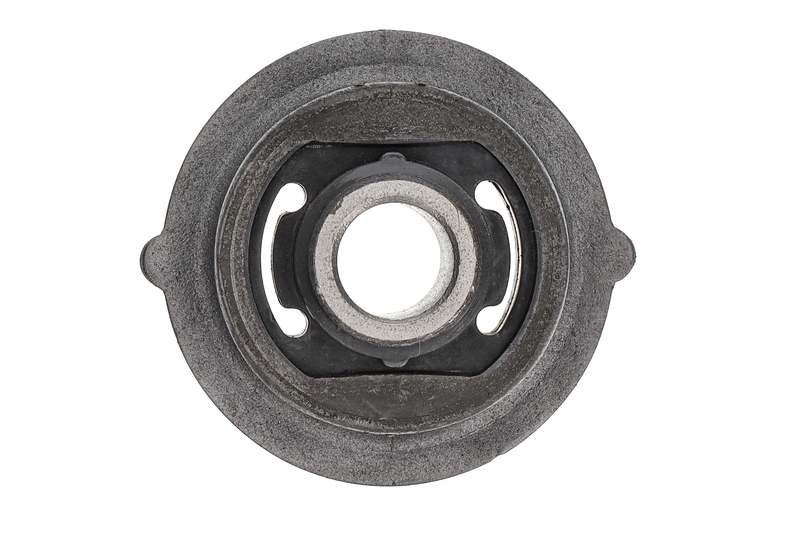

Mounting, control/trailing arm
70593
| Quality | Original AIC quality |
| Fitting Position: | Front Axle,Left,Right |
| Height [mm]: | 48 mm |
| Inner Diameter [mm]: | 18 mm |
| Outer Diameter [mm]: | 55 mm |
| Control/Trailing Arm Type: | for control arm |
| Mounting Type: | Rubber-Metal Mount |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| CITROEN | C3 I (FC_, FN_) | 05/2003 | 09/2005 | 5890 | 0081 | |
| CITROEN | C3 I (FC_, FN_) | 07/2003 | 02/2011 | 12976 | 0052 | |
| CITROEN | C3 I (FC_, FN_) | 05/2005 | 12/2009 | 23829 | 0055 | |
| CITROEN | C2 (JM_) | 10/2006 | 12/2009 | 31995 | 0055 | |
| CITROEN | C2 ENTERPRISE ( | 09/2006 | 12/2009 | 33323 | 0050 | |
| CITROEN | C3 I (FC_, FN_) | 12/2005 | 07/2012 | 52441 | 0058 | |
| CITROEN | C3 Pluriel (HB_ | 07/2003 | / | 12248 | 0055 | |
| CITROEN | C3 I (FC_, FN_) | 06/2006 | 12/2009 | 12897 | 0044 | |
| CITROEN | C3 I (FC_, FN_) | 09/2008 | 12/2009 | 13160 | 0054 | |
| CITROEN | C2 (JM_) | 09/2003 | 04/2005 | 13257 | 0051 | |
| CITROEN | C3 I (FC_, FN_) | 01/2008 | 12/2009 | 13258 | 0049 | |
| CITROEN | C2 ENTERPRISE ( | 11/2003 | 04/2005 | 13271 | 0051 | |
| CITROEN | C2 ENTERPRISE ( | 11/2003 | 12/2009 | 13271 | 0044 | |
| CITROEN | C2 (JM_) | HFX (T | 09/2003 | 09/2012 | 17330 | 0044 |
| CITROEN | C2 (JM_) | KFV (T | 09/2003 | 12/2009 | 17331 | 0054 |
| CITROEN | C2 (JM_) | KFU (E | 04/2005 | 12/2009 | 19682 | 0065 |
| CITROEN | C2 (JM_) | NFU (T | 07/2003 | 10/2010 | 17332 | 0080 |
| CITROEN | C2 (JM_) | NFS (T | 10/2004 | 12/2009 | 18613 | 0090 |
| CITROEN | C2 (JM_) | 8HX (D | 07/2003 | 12/2009 | 17333 | 0050 |
| CITROEN | C2 (JM_) | 9HZ (D | 09/2005 | 12/2009 | 26625 | 0080 |
| CITROEN | C3 I (FC_, FN_) | HFX (T | 02/2002 | 12/2009 | 16330 | 0044 |
| CITROEN | C3 I (FC_, FN_) | KFV (T | 02/2002 | 11/2010 | 23183 | 0054 |
| CITROEN | C3 I (FC_, FN_) | KFV (T | 02/2002 | 12/2009 | 16334 | 0054 |
| CITROEN | C3 I (FC_, FN_) | KFU (E | 12/2003 | 08/2010 | 17892 | 0065 |
| CITROEN | C3 I (FC_, FN_) | NFU (T | 02/2002 | 08/2010 | 16335 | 0080 |
| CITROEN | C3 I (FC_, FN_) | 8HX (D | 02/2002 | 12/2009 | 16331 | 0050 |
| CITROEN | C3 I (FC_, FN_) | 8HY (D | 02/2002 | 06/2008 | 16336 | 0066 |
| CITROEN | C3 I (FC_, FN_) | 9HX (D | 10/2005 | 12/2009 | 19340 | 0066 |
| CITROEN | C3 I (FC_, FN_) | 9HZ (D | 09/2005 | 12/2009 | 19017 | 0080 |
| CITROEN | C3 II (SC_) | 8HZ (D | 11/2009 | 09/2016 | 33395 | 0050 |
| CITROEN | C3 II (SC_) | 9HX (D | 11/2009 | 09/2016 | 33394 | 0066 |
| CITROEN | C3 Pluriel (HB_ | KFV (T | 05/2003 | / | 17277 | 0054 |
| CITROEN | C3 Pluriel (HB_ | NFU (T | 05/2003 | / | 17276 | 0080 |
| CITROEN | C3 Pluriel (HB_ | 8HX (D | 04/2004 | / | 18085 | 0050 |
| PEUGEOT | 1007 (KM_) | KFV (T | 04/2005 | / | 18431 | 0054 |
| PEUGEOT | 1007 (KM_) | KFU (E | 10/2005 | / | 18993 | 0065 |
| PEUGEOT | 1007 (KM_) | NFU (T | 04/2005 | / | 18432 | 0080 |
| PEUGEOT | 1007 (KM_) | 8HX (D | 04/2005 | / | 18433 | 0050 |
| PEUGEOT | 1007 (KM_) | 9HZ (D | 06/2007 | / | 23230 | 0080 |
| Manufacturer | Comparison number |
|---|---|
| CITRO | 3523.99 |
