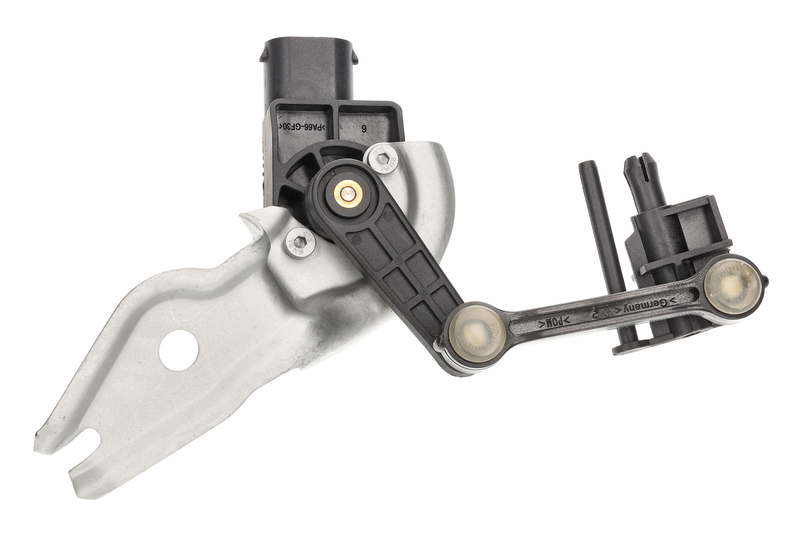

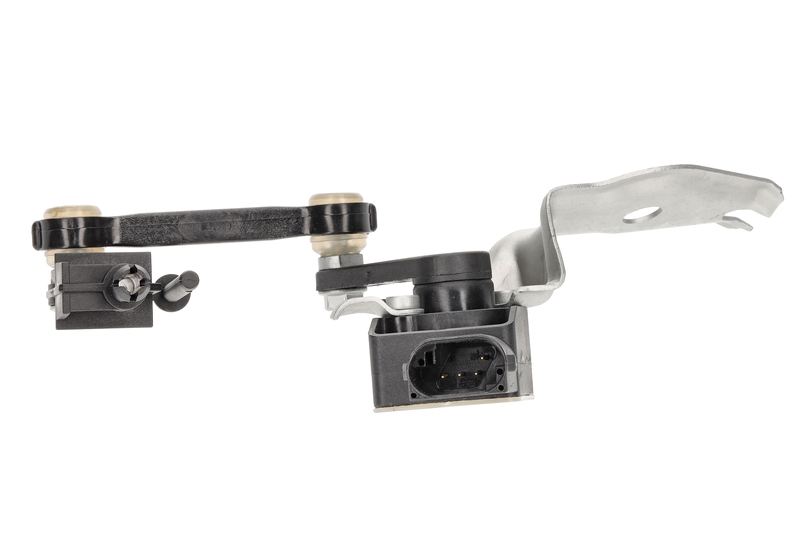

sensor, headlight range adjustment
70349
| Quality | Original AIC quality |
| Fitting Position: | Front Axle Right |
| Spring Type: | for vehicles with air suspension |
| Number of pins: | 4 -pin connector |
| Supplementary Article/Supplementary Info 2: | with holding frame,with coupling rod |
| Guarantee: | 5 years guarantee or up to 75,000km |
| Unit | 1 |
| Manufacturer | Model | Motorcode | Built from | to | K-type | KW |
|---|---|---|---|---|---|---|
| VW | PHAETON (3D1, 3 | BKL, A | 04/2002 | 05/2005 | 16693 | 0177 |
| VW | PHAETON (3D1, 3 | BRK, B | 02/2004 | 11/2008 | 18394 | 0177 |
| VW | PHAETON (3D1, 3 | CHNA, | 11/2008 | 03/2016 | 31101 | 0206 |
| VW | PHAETON (3D1, 3 | BGH, B | 05/2003 | 03/2016 | 17426 | 0246 |
| VW | PHAETON (3D1, 3 | BAN | 04/2002 | 12/2005 | 16561 | 0309 |
| VW | PHAETON (3D1, 3 | BTT, B | 05/2005 | 03/2016 | 19796 | 0331 |
| VW | PHAETON (3D1, 3 | BMK | 09/2004 | 05/2007 | 18395 | 0165 |
| VW | PHAETON (3D1, 3 | CARA | 06/2007 | 11/2008 | 31103 | 0171 |
| VW | PHAETON (3D1, 3 | CEXA, | 11/2008 | 03/2016 | 31102 | 0176 |
| VW | PHAETON (3D1, 3 | CEXB | 11/2013 | 03/2016 | 10007 | 0180 |
| VW | PHAETON (3D1, 3 | AJS | 11/2002 | 10/2006 | 17001 | 0230 |
| VW | TOUAREG (7LA, 7 | AZZ, B | 10/2002 | 11/2006 | 16819 | 0162 |
| VW | TOUAREG (7LA, 7 | BMV | 11/2004 | 11/2006 | 18427 | 0177 |
| VW | TOUAREG (7LA, 7 | BHL, B | 10/2005 | 05/2010 | 19455 | 0206 |
| VW | TOUAREG (7LA, 7 | AXQ, B | 12/2002 | 11/2006 | 17178 | 0228 |
| VW | TOUAREG (7LA, 7 | BAR | 06/2006 | 05/2010 | 23298 | 0257 |
| VW | TOUAREG (7LA, 7 | BJN, C | 08/2004 | 05/2010 | 18527 | 0331 |
| VW | TOUAREG (7LA, 7 | BLK, B | 08/2003 | 05/2010 | 28286 | 0120 |
| VW | TOUAREG (7LA, 7 | BAC, B | 01/2003 | 05/2010 | 17182 | 0128 |
| VW | TOUAREG (7LA, 7 | BUN, C | 04/2006 | 05/2010 | 30398 | 0155 |
| VW | TOUAREG (7LA, 7 | BKS, C | 11/2004 | 05/2010 | 18428 | 0165 |
| VW | TOUAREG (7LA, 7 | CASA, | 11/2007 | 05/2010 | 28168 | 0176 |
| VW | TOUAREG (7LA, 7 | AYH, B | 10/2002 | 05/2010 | 16820 | 0230 |
| VW | TOUAREG (7LA, 7 | CBWA | 08/2007 | 05/2010 | 23481 | 0257 |
| AUDI | A8 D3 (4E2, 4E8 | BDX | 08/2007 | 07/2010 | 23189 | 0154 |
| AUDI | A8 D3 (4E2, 4E8 | ASN | 07/2003 | 05/2005 | 17546 | 0162 |
| AUDI | A8 D3 (4E2, 4E8 | BPK | 06/2005 | 07/2010 | 18672 | 0191 |
| AUDI | A8 D3 (4E2, 4E8 | BPK | 06/2005 | 07/2010 | 18673 | 0191 |
| AUDI | A8 D3 (4E2, 4E8 | BFL | 10/2002 | 05/2006 | 16994 | 0206 |
| AUDI | A8 D3 (4E2, 4E8 | BFM | 10/2002 | 07/2010 | 16888 | 0246 |
| AUDI | A8 D3 (4E2, 4E8 | BVJ | 06/2006 | 07/2010 | 19622 | 0257 |
| AUDI | A8 D3 (4E2, 4E8 | BSM | 06/2006 | 07/2010 | 19460 | 0331 |
| AUDI | A8 D3 (4E2, 4E8 | BHT, B | 12/2003 | 07/2010 | 17799 | 0331 |
| AUDI | A8 D3 (4E2, 4E8 | BNG | 11/2003 | 07/2010 | 18764 | 0155 |
| AUDI | A8 D3 (4E2, 4E8 | ASB | 08/2003 | 07/2010 | 17920 | 0171 |
| AUDI | A8 D3 (4E2, 4E8 | ASE | 05/2003 | 07/2005 | 17273 | 0202 |
| AUDI | A8 D3 (4E2, 4E8 | BVN | 07/2005 | 07/2010 | 19621 | 0240 |
| AUDI | Q7 (4LB) | CJTC, | 05/2010 | 08/2015 | 34965 | 0200 |
| AUDI | Q7 (4LB) | CJTB, | 05/2010 | 08/2015 | 34966 | 0245 |
| AUDI | Q7 (4LB) | BHK | 08/2006 | 05/2010 | 19803 | 0206 |
| AUDI | Q7 (4LB) | BAR | 03/2006 | 05/2010 | 19012 | 0257 |
| AUDI | Q7 (4LB) | CJMA, | 05/2010 | 08/2015 | 34967 | 0150 |
| AUDI | Q7 (4LB) | CASB, | 03/2006 | 05/2010 | 21589 | 0155 |
| AUDI | Q7 (4LB) | BUG | 03/2006 | 05/2008 | 19016 | 0171 |
| AUDI | Q7 (4LB) | CASA, | 11/2007 | 08/2015 | 26563 | 0176 |
| AUDI | Q7 (4LB) | CRCA, | 05/2011 | 08/2015 | 10442 | 0180 |
| AUDI | Q7 (4LB) | BTR | 03/2007 | 06/2009 | 22558 | 0240 |
| AUDI | Q7 (4LB) | CCFC, | 05/2009 | 08/2015 | 31430 | 0250 |
| AUDI | Q7 (4LB) | CCGA | 09/2008 | 05/2014 | 30693 | 0368 |
| AUDI | Q7 (4LB) | 06/2009 | 05/2012 | 9337 | 0165 | |
| AUDI | Q7 (4LB) | 05/2011 | 08/2015 | 12086 | 0206 | |
| AUDI | A8 D3 (4E2, 4E8 | 01/2005 | 06/2005 | 18674 | 0235 | |
| AUDI | A8 D3 (4E2, 4E8 | 07/2003 | 05/2006 | 18763 | 0160 | |
| AUDI | A8 D3 (4E2, 4E8 | 11/2003 | 05/2004 | 21577 | 0160 | |
| AUDI | A8 D3 (4E2, 4E8 | 07/2003 | 05/2005 | 13300 | 0162 | |
| AUDI | Q7 Van (4LB) | 11/2010 | 08/2015 | 14255 | 0150 | |
| AUDI | Q7 Van (4LB) | 03/2006 | 05/2010 | 14255 | 0155 | |
| AUDI | Q7 Van (4LB) | 03/2006 | 05/2008 | 14256 | 0171 | |
| AUDI | Q7 Van (4LB) | 11/2007 | 05/2012 | 14256 | 0176 | |
| AUDI | Q7 Van (4LB) | 05/2011 | 08/2015 | 14256 | 0180 | |
| AUDI | Q7 Van (4LB) | 05/2010 | 08/2015 | 14257 | 0245 | |
| AUDI | Q7 Van (4LB) | 08/2006 | 05/2010 | 14257 | 0206 | |
| AUDI | Q7 Van (4LB) | 03/2007 | 06/2009 | 14257 | 0240 | |
| AUDI | Q7 Van (4LB) | 03/2007 | 08/2015 | 14257 | 0250 | |
| AUDI | Q7 Van (4LB) | 08/2006 | 05/2010 | 14257 | 0257 | |
| AUDI | Q7 Van (4LB) | 09/2008 | 05/2014 | 14258 | 0368 | |
| PORSCHE | CAYENNE (9PA) | M02.2Y | 10/2003 | 09/2007 | 17693 | 0184 |
| PORSCHE | CAYENNE (9PA) | M 55.0 | 02/2007 | 09/2010 | 20112 | 0213 |
| PORSCHE | CAYENNE (9PA) | M 48.0 | 09/2002 | 09/2007 | 16695 | 0250 |
| PORSCHE | CAYENNE (9PA) | M 48.5 | 09/2002 | 09/2007 | 16848 | 0331 |
| PORSCHE | CAYENNE (9PA) | M 48.5 | 01/2004 | 09/2007 | 18918 | 0368 |
| PORSCHE | CAYENNE (9PA) | M 48.5 | 05/2002 | 05/2006 | 19451 | 0383 |
| PORSCHE | CAYENNE (9PA) | M 48.0 | 02/2007 | 09/2010 | 20113 | 0283 |
| PORSCHE | CAYENNE (9PA) | M 48.0 | 10/2007 | 09/2010 | 24478 | 0298 |
| PORSCHE | CAYENNE (9PA) | M 48.5 | 02/2007 | 09/2010 | 20114 | 0368 |
| PORSCHE | CAYENNE (9PA) | M 48.5 | 02/2007 | 09/2010 | 32084 | 0397 |
| PORSCHE | CAYENNE (9PA) | M 48.5 | 08/2008 | 09/2010 | 32082 | 0404 |
| PORSCHE | CAYENNE (9PA) | M 05.9 | 02/2009 | 09/2010 | 30764 | 0176 |
| PORSCHE | CAYENNE (9PA) | 08/2003 | 09/2007 | 21569 | 0177 | |
| PORSCHE | CAYENNE (9PA) | 09/2007 | 12/2009 | 54653 | 0373 |
| Manufacturer | Comparison number |
|---|---|
| VAG | 7L0 616 213B |
| VAG | 7L0 616 213C |
| VAG | 7L0 616 213D |
| AUDI | 7L0 616 214B |
| AUDI | 7L0 616 214C |
| AUDI | 7L0 616 214D |
| PORSC | 955 341 076 00 |
| PORSC | 955 341 076 20 |
| PORSC | 955 341 076 21 |
